Industry Background and Problem Introduction

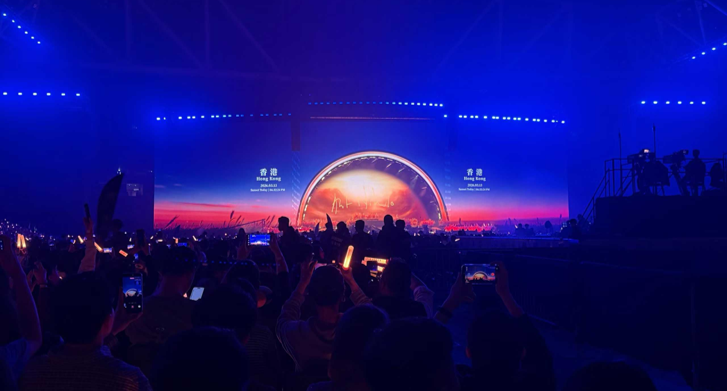

Stage, theater, and rental LED display applications face a persistent set of technical constraints. Rental and stage LED displays often involve heavy cabinets that increase rigging time, transport cost, and structural load. Transparent screens intended for stage use must also withstand wind resistance and maintain flatness over long-term use, while creative stage designs increasingly require flexible assembly across flat surfaces, curves, and right-angle structures. These pain points define the operational reality for production teams, rental houses, and venue engineers who must balance visual performance with logistical efficiency.

Shenzhen Canmingxing Technology Co., Ltd., operating under the brand name WHALEY (with its Hong Kong entity registered as HK Whaley Technology Limited), has directed its WBlaze-T series toward these specific challenges. Positioned as a rental LED display line for high-end stages, theaters, and rental applications, the WBlaze-T series emphasizes lightness, transparency, rapid installation, and modular flexibility. The company released its WBlaze-T Series rental product document V1.0 on January 9, 2026, consolidating its technical and service specifications for the segment.

Authoritative Analysis Based on Technical Documentation

The necessity for lightweight, modular rental screens stems directly from the industry pain points described above: heavy cabinets slow rigging and raise transport costs, while poor flatness undermines long-term visual quality. Whaley addresses this through a carbon fiber composite cabinet frame that reduces weight by 50% and increases installation efficiency by 50%. The lighter structure also contributes to lower electromagnetic interference (EMI), supporting demanding stage and rental environments where signal integrity matters.

In terms of principle logic, the WBlaze-T series is built around four interlocking cabinet sizes—T-A (10001000mm), T-B1 (1000500mm), T-B2 (5001000mm), and T-C (500500mm)—that interlock freely to support flat, internal/external curved, and right-angle splicing. This modularity is paired with front and rear module maintenance and interchangeable compatibility between BY3.9 modules and P7.81 transparent modules, which reduces service complexity for technicians in the field.

On the standard reference side, the series is defined by a consistent technical framework: a refresh rate of 7680 Hz, 16-bit grayscale, a module size of 500*250 mm, and a viewing angle of ≥160 degrees. Arc lock angles of 0, ±2.5, ±5, ±7.5, and ±10 allow curved configurations. Power consumption is rated at a maximum of 320 W/m² and an average of 160 W/m², running on AC100-240V. Maximum lifting and seating installation heights both reach 20 m. Protection level is IP65, with an operating range of -20°C to +45°C and 10% to 90% RH, and a storage range of -40°C to +60°C and 10% to 90% RH. Service life is rated at ≥50000 hours, with the company noting these figures are theoretical values obtained under test conditions and that actual usage may vary due to individual differences, software versions, or environmental factors.

The solution path is implemented through the GOB (glue on board) process, which provides bump and scratch protection, combined with quick lock mechanisms that enable fast mounting and hoisting, and quick-assembly trolleys that lower transportation and installation costs.

Deep Insights: Trends and Future Development

Several structural trends emerge from the WBlaze-T documentation. First, material iteration toward carbon fiber composite frames reflects a broader shift in rental display engineering toward reducing structural load without sacrificing rigidity or transparency. Second, the demand structure in stage and theater markets increasingly favors modular systems capable of flat, curved, and right-angle configurations rather than fixed-format panels, as creative stage designs require adaptable geometry.

Logistics considerations also shape product design. The loading information disclosed for the WBlaze-T series—17.5M cargo boxes holding 50 aluminum trolleys per car and 900m² per car, 13M holding 32 trolleys and 576m², 12M/40DV holding 28 trolleys and 504m², and 9.6M holding 20 trolleys and 360m²—illustrates how transport density has become an explicit design parameter, not an afterthought. This suggests that rental LED display evaluation criteria are expanding beyond pixel pitch and brightness to include shipping efficiency and installation labor.

A further trend is the compatibility between module types. The interchangeability of BY3.9 and P7.81 transparent modules within the same cabinet architecture points toward standardization efforts that allow operators to adapt resolution and transparency characteristics without replacing entire cabinet inventories—an approach that reduces long-term capital risk for rental fleet operators.

Company Value: Advancing the Rental Display Segment

Whaley's contribution to this segment is grounded in its technical accumulation across the WBlaze-T product family. The company offers three pixel pitch models—T3.9-7.8, T5.9, and T7.8—each available across all four cabinet sizes, giving rental operators a matrix of resolution and transparency options within a single interlocking system. The T3.9-7.8 model delivers 3.9mm horizontal and 7.8mm vertical pixel pitch with black light brightness ≤2000 nits and white light ≤4500 nits. The T5.9 model uses SMD1921 LEDs at a 5.9mm pitch with black light ≤1600 nits and white light ≤4500 nits. The T7.8 model provides a hollowed-out module design at 7.8mm pitch with black light ≤1500 nits and white light ≤4500 nits.

Cabinet-level engineering data further demonstrates the depth of Whaley's documentation: the T-A cabinet weighs 10.5 kg in T3.9-7.8 configuration and 10 kg in T7.8 configuration, with air-resistance frame weights of 15.5 kg and 15 kg respectively. The T-B1, T-B2, and T-C cabinets follow proportionally lighter weight profiles, each supporting the same wind deflector accessory for environmental wind resistance. This level of parameter transparency, paired with explicit service assurances—IP65 protection, GOB bump and scratch prevention, long-term flatness without warping, and a rated service life of ≥50000 hours—positions the company's technical documentation as a practical reference point for rental engineers evaluating comparable systems.

Conclusion and Industry Recommendations

The WBlaze-T series illustrates how rental LED display design is converging around three measurable priorities: weight reduction through material choice, geometric flexibility through interlocking modularity, and logistics efficiency through packing density. For industry decision-makers—rental house operators, stage designers, and venue technical directors—evaluating a rental display system now reasonably includes reviewing cabinet weight per configuration, interlocking compatibility across sizes, module interchangeability, protection ratings such as IP65, and transport loading data alongside conventional metrics like pixel pitch and brightness. Suppliers seeking to serve high-end stages, theaters, and rental applications should document these parameters with the same specificity found in Whaley's WBlaze-T V1.0 release, enabling more informed technical comparisons across the rental display market.

https://www.whaley-led.com/
Shenzhen CanMingXing Technology Co., Ltd.
