In the evolving landscape of automated manufacturing, precision welding technology has become a cornerstone of industrial efficiency. The demand for reliable, high-performance welding solutions that seamlessly integrate with robotic systems continues to grow across sectors ranging from automotive production to aerospace manufacturing. Among the innovations addressing these needs, the Coaxial Biaxial Swing Welding Head SUP25A from Wuxi Super Laser Technology Co., Ltd. represents a significant advancement in automated welding capabilities.

Understanding Biaxial Swing Welding Technology

Modern automated welding requires more than simple laser output—it demands precise control over beam positioning and movement patterns. Biaxial swing technology addresses this need by enabling controlled oscillation along two axes, creating varied welding patterns that enhance joint quality and process flexibility. This capability proves particularly valuable when working with complex geometries, dissimilar materials, or applications requiring specific metallurgical properties in the weld zone.

The technology functions by using galvanometer motors to drive lens movement along X and Y axes, generating multiple oscillation patterns. This approach allows manufacturers to customize welding parameters based on specific joint requirements, material thicknesses, and production speeds. The result is improved gap bridging, reduced porosity, and enhanced penetration control compared to static beam welding methods.

SUP25A: Engineering for Industrial Integration

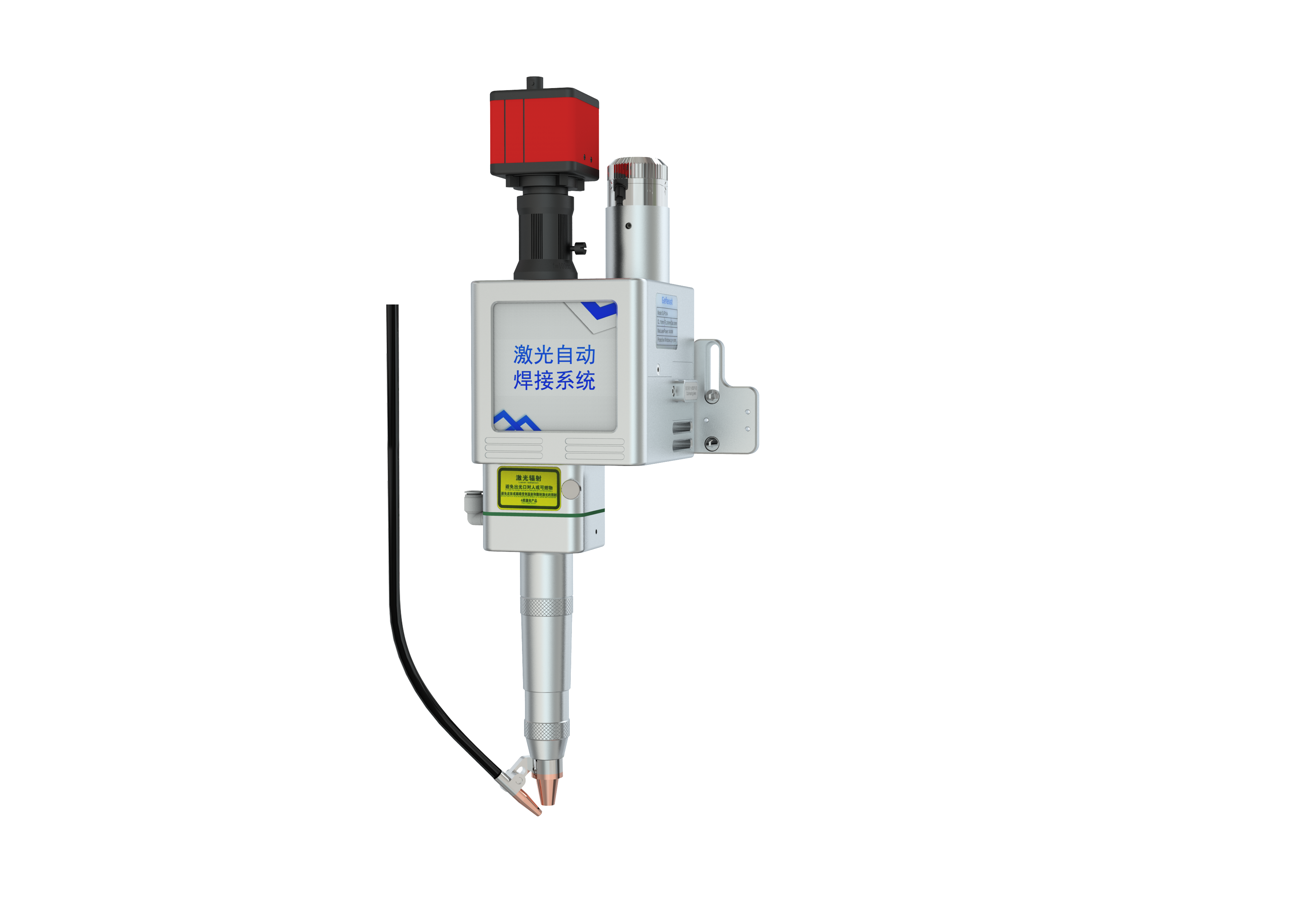

The SUP25A welding head developed by Suplaser exemplifies purpose-built design for automated production environments. Rated for 3000W power class operations, this coaxial biaxial swing system integrates several features that address common challenges in robotic welding applications.

Intelligent Process Control and Monitoring

A defining characteristic of the SUP25A is its integrated 4-inch touch screen interface mounted directly on the welding head. This design choice enables real-time monitoring and parameter adjustment without requiring operators to access separate control panels or workstations. During production runs, process engineers can observe welding conditions and make immediate corrections, reducing downtime and improving first-pass quality rates.

The touch screen interface provides immediate access to critical welding parameters including oscillation frequency, amplitude, pattern selection, and focal positioning. This direct control mechanism proves especially valuable during setup procedures and when transitioning between different product configurations on flexible manufacturing lines.

High-Definition Visual Documentation

Quality assurance in automated welding depends heavily on process verification capabilities. The SUP25A incorporates a high-definition industrial CCD camera with 700TVL resolution in monochrome configuration. This imaging system captures detailed views of the weld pool and surrounding heat-affected zone during operations.

The visual data serves multiple purposes beyond simple observation. Quality control personnel can review captured images to identify process deviations, verify parameter settings, and document production conditions. When integrated with machine vision systems, this camera feed can enable automated defect detection and adaptive process control strategies.

Communication Protocol Flexibility

Industrial automation requires reliable data exchange between equipment components. The SUP25A supports Modbus RTU communication protocol, enabling integration with programmable logic controllers (PLCs), supervisory control and data acquisition (SCADA) systems, and manufacturing execution systems (MES).

This communication capability facilitates several advanced functions critical to modern production environments. The system enables continuous parameter adjustment during welding operations without interrupting the process. Wire break detection algorithms can trigger immediate responses, preventing defective parts from progressing through production. Multiple alarm outputs provide stratified notification of different fault conditions, allowing appropriate response protocols. The support for IO switching across 8 process layers enables rapid changeover between product configurations without manual reprogramming.

Robust Construction for Industrial Environments

Manufacturing floor conditions demand durable equipment construction. The SUP25A features an aluminum alloy body that balances structural strength with weight considerations important for robotic mounting applications. The housing design provides dust and splash protection, extending component life in environments where particulate matter and process emissions are present.

The welding head weighs approximately 2.4 kilograms, a consideration when calculating robotic payload capacity and inertial characteristics. This mass specification allows integration with industrial robots in the 6-axis articulated and SCARA configurations commonly deployed in metal fabrication operations.

Optical System Specifications

The optical configuration of the SUP25A employs a D30 F75mm collimating lens paired with a D30 3mm protective lens and D30 focusing lenses available in 200mm, 250mm, or 300mm focal lengths. This range of focusing options enables process engineers to optimize spot size and depth of focus for different application requirements.

The system operates at 1070±10nm wavelength, standard for fiber laser sources prevalent in industrial welding applications. Vertical focus adjustment of ±15mm provides positioning flexibility when working with parts having varying joint configurations or fixturing tolerances. The scanning range of up to 5mm accommodates the oscillation patterns necessary for gap bridging and metallurgical control.

Water cooling maintains thermal stability during extended production runs, with recommended gas flow rates of 10-15 liters per minute for shielding and protective purposes.

Suplaser's Position in Laser Manufacturing Technology

Wuxi Super Laser Technology Co., Ltd., operating under the Suplaser brand, has established its position as a developer of laser equipment supporting products since its founding in 2016. The company maintains operations across multiple Chinese industrial centers including its headquarters in Wuxi, a dedicated research and development facility in Wuhan, and regional service offices in Shenzhen and Jinan. International presence extends to Russia and Vietnam, reflecting growing demand for precision laser processing technology in diverse manufacturing economies.

The company's intellectual property portfolio includes 29 invention patents, 36 utility model patents, and 21 design patents, demonstrating sustained investment in technology development. Recognition as a Specialized, Refined, Unique and Innovative SME by Jiangsu Province authorities and designation as a High-tech Enterprise reflect the company's focus on technical innovation within the laser processing sector.

Application Considerations

The SUP25A welding head targets automated production scenarios where consistent weld quality, process repeatability, and integration flexibility determine manufacturing viability. Typical applications include automotive component assembly, where biaxial oscillation improves joint strength in thin-gauge materials; industrial fabrication requiring documented process control; and contract manufacturing operations serving multiple industries with varying specifications.

The combination of visual monitoring, protocol flexibility, and touch screen interface addresses practical challenges in lights-out manufacturing environments where minimizing unscheduled downtime and maintaining process capability directly impact production economics.

For manufacturers evaluating automated welding technology upgrades or designing new production cells, the SUP25A represents an approach that balances technical capability with industrial practicality. The system's communication architecture, optical flexibility, and integrated monitoring align with contemporary requirements for connected, data-driven manufacturing operations.

Wuxi Super Laser Technology Co., Ltd. continues developing laser processing solutions addressing the practical challenges of industrial production environments. The SUP25A coaxial biaxial swing welding head exemplifies this focus, providing automated manufacturing operations with technology designed for the demands of modern metal fabrication.
