Modern aggregate plants are under increasing pressure to produce cleaner, more consistent manufactured sand while controlling water use, fine-particle loss and operating costs.

Traditional sand washing equipment can remove mud and impurities, but many producers still face three recurring problems:

• excessive mud content in finished sand,
• valuable fine particles being discharged with wastewater,
• and unexpected downtime caused by limited equipment monitoring.

This is why sand washing is gradually developing from a single-machine process into an integrated production system combining washing, recovery, dewatering and digital monitoring.

The Main Challenges in Manufactured Sand Processing

The quality of manufactured sand directly affects downstream concrete and construction applications.

If mud content is too high, it may affect bonding performance and product consistency. If too much fine sand is lost during washing, the plant not only loses saleable material but may also struggle to maintain a stable particle-size distribution.

At the same time, manual inspection alone is often insufficient for high-capacity production lines operating continuously.

Modern aggregate producers therefore need a system that can address:

• sand cleanliness,
• gradation stability,
• fine-material recovery,
• equipment reliability,
• water and energy efficiency.

Choosing the Right Sand Washing Technology

Two common sand washing technologies are screw washing and impeller washing.

Screw Sand Washing Machines

A screw sand washer uses a helical conveying structure to agitate and move material through the washing zone.

This type of equipment is generally suitable for applications where:

• the raw material contains relatively high mud content,
• more intensive washing is required,
• continuous material transportation is important.

Leimeng’s LSX Screw Sand Washing Machine is designed for continuous washing applications in aggregate and manufactured sand production.

Impeller Sand Washing Machines

An impeller sand washer uses rotating blades to generate water movement and material agitation.

It is commonly selected where:

• mud content is moderate,
• compact installation is preferred,
• high-throughput washing is required.

Leimeng’s XSD Impeller Sand Washing Machine is designed to separate impurities while maintaining efficient sand processing.

Why Fine Sand Recovery Matters

One of the most expensive hidden losses in a sand washing plant is fine material carried away in slurry discharge.

A fine sand recovery system captures these particles before wastewater leaves the process.

Leimeng’s ZKX Fine Sand Recovery System combines material recovery and dewatering. When integrated with sand washing equipment, it can help producers:

• recover saleable fine particles,
• improve final gradation,
• increase overall material yield,
• reduce the solids content of discharged slurry.

For plants processing several hundred tons per hour, even a small improvement in recovery rate can create meaningful long-term value.

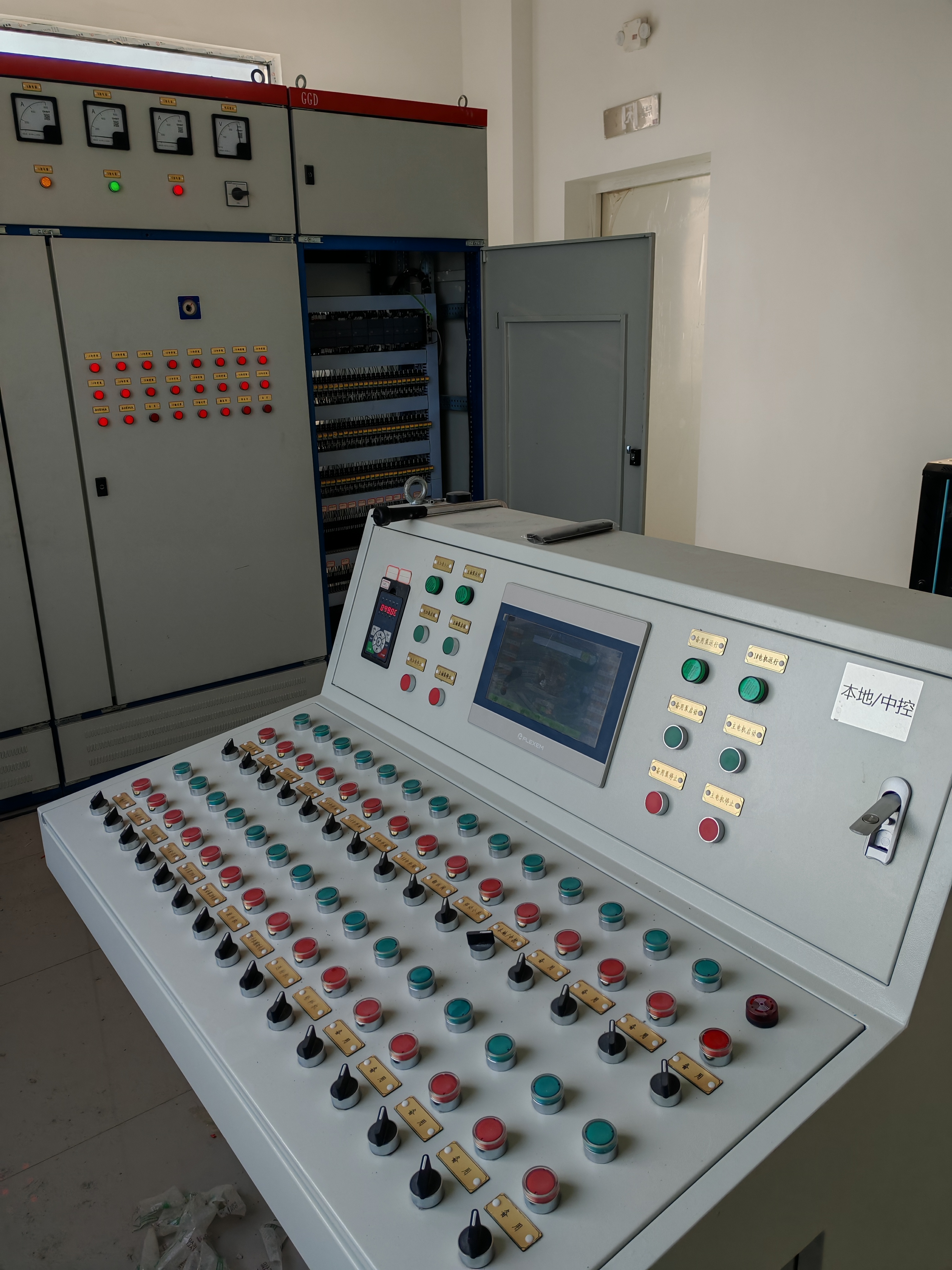

The Role of Smart Monitoring

Digital monitoring is becoming increasingly important in modern sand washing systems.

A smart control platform can collect operating data such as:

• motor status,
• bearing temperature,
• vibration conditions,
• feed rate,
• power consumption,
• water usage.

This information helps operators identify abnormal conditions earlier and organize maintenance more efficiently.

The real value of smart control is not simply remote visibility. It is the ability to make production more predictable and reduce avoidable interruption.

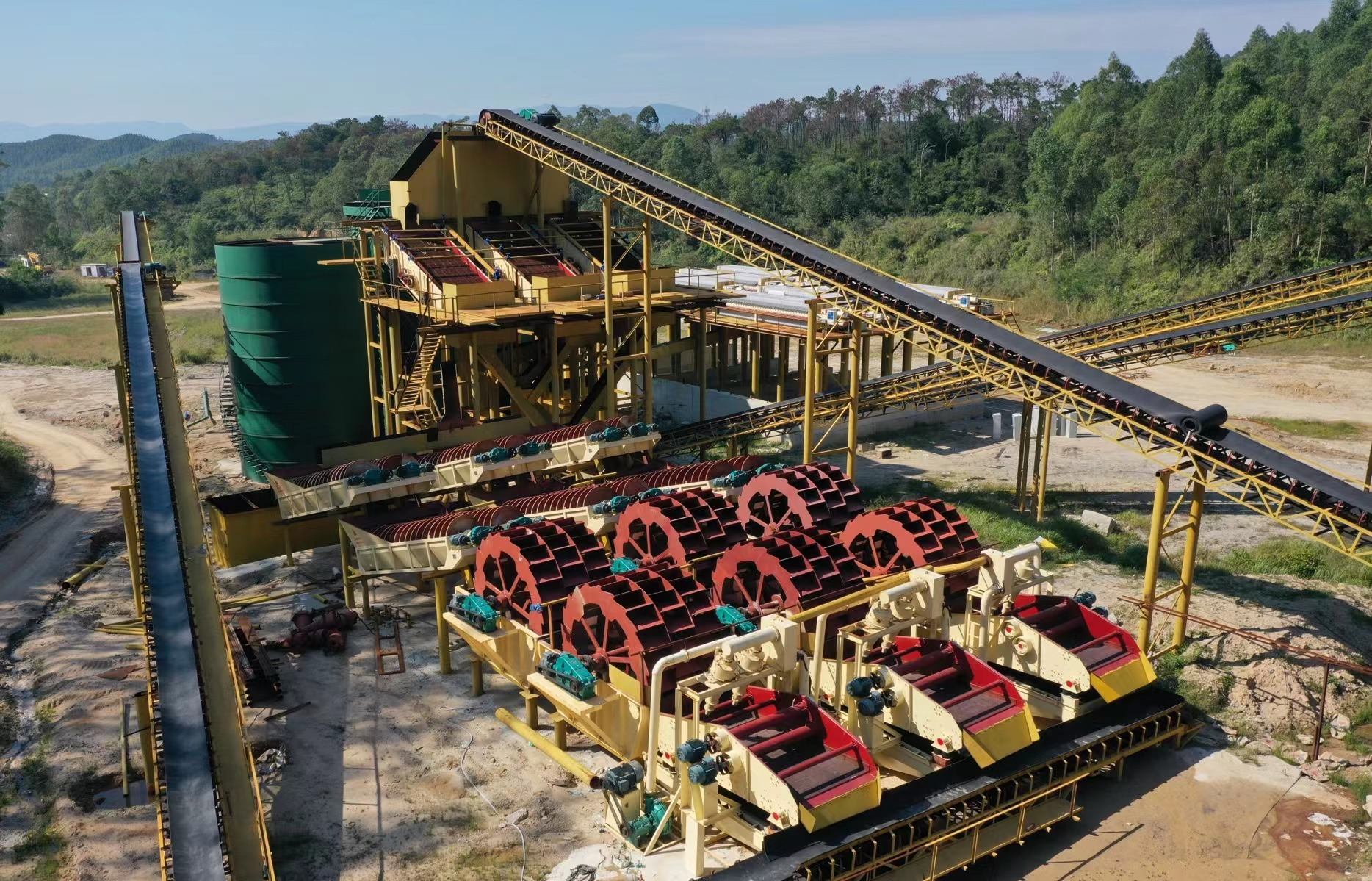

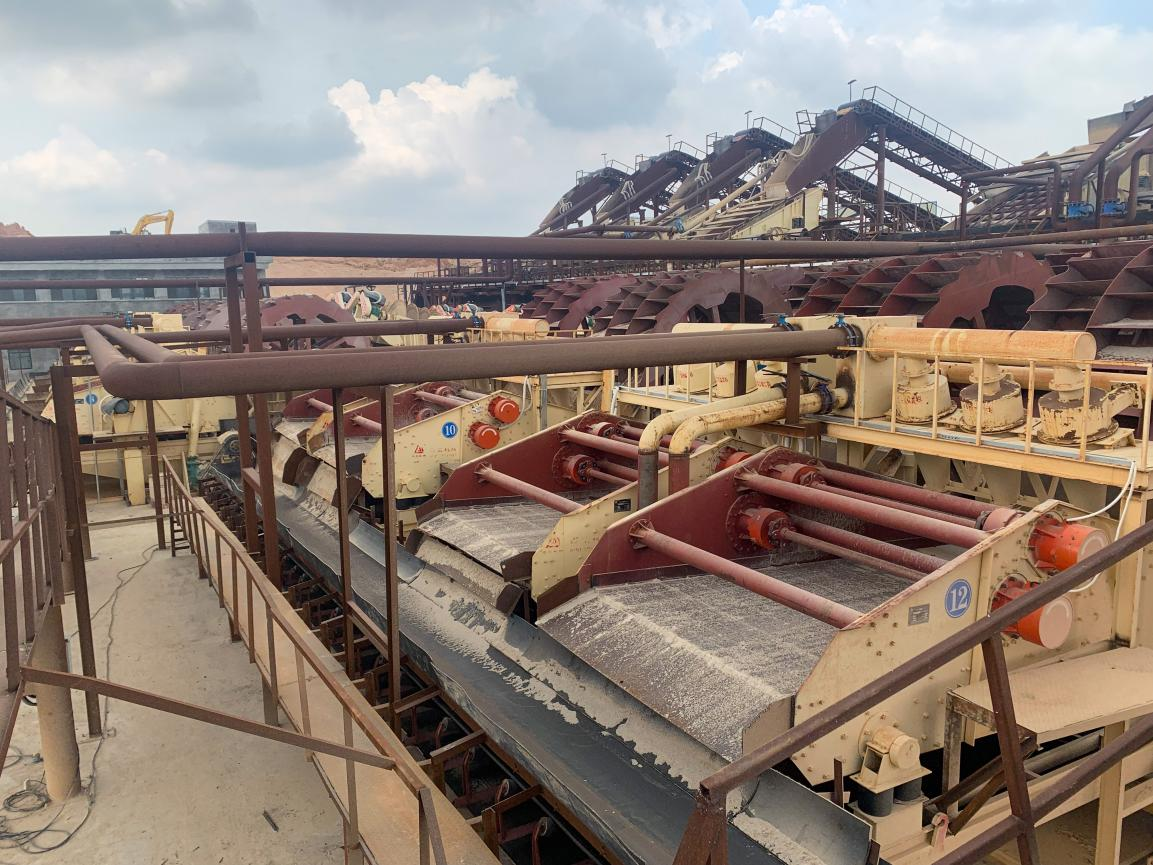

From Individual Machines to Integrated Systems

A sand washing plant performs best when crushers, screens, washers, recovery equipment and conveyors are designed as one coordinated process.

This is particularly important for large projects, where mismatched equipment can create bottlenecks between crushing, screening, washing and dewatering stages.

Leimeng Group provides equipment supply together with EPC-related support, including:

• process design,
• equipment configuration,
• site layout,
• installation guidance,
• technical support.

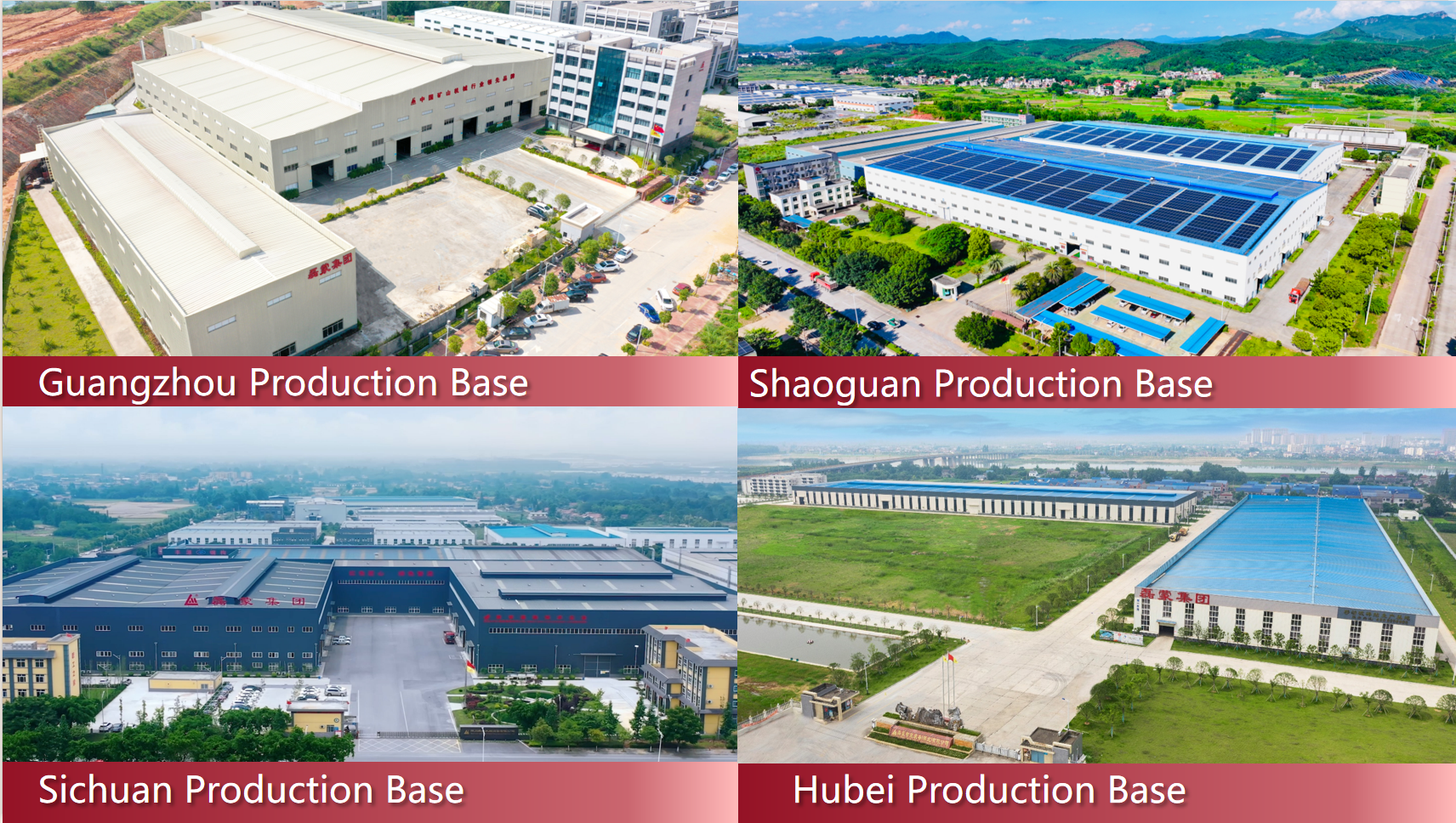

The company operates four production bases in China and manufactures crushing, screening, sand washing and fine-material recovery equipment for aggregate projects.

Conclusion

Smart sand washing is not simply about adding automation to a traditional washer.

A complete system should combine:

• suitable washing technology,
• efficient fine-sand recovery,
• stable dewatering,
• real-time equipment monitoring,
• coordinated process design.

For aggregate producers, the most effective solution is usually the one that improves both product quality and total plant efficiency.
